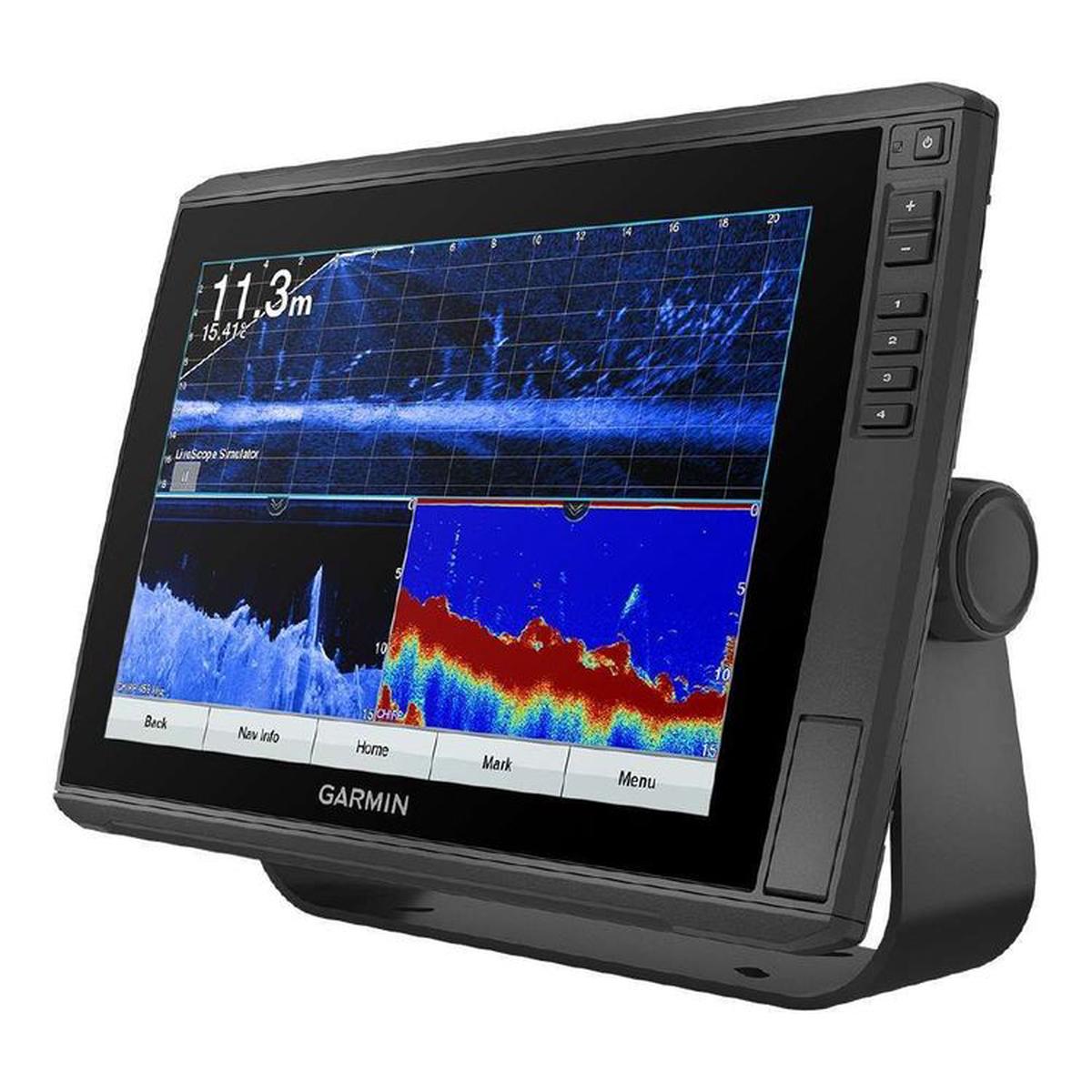

Garmin EchoMap Ultra 125sv Combo has all the tools you need for successfulfishing. It includes an all-in-oneTransducerforCHIRPtraditional and Ultra High-DefinitionClearVuandSideVuscanning sonars.

With its bright, sunlight-readable 12″ keyed-assist touchscreen display, has all the tools you need for successful fishing. It includes an all-in-one transducer for CHIRP traditional and Ultra High-Definition ClearVu and SideVu scanning sonars. It also includes preloaded BlueChart g2 coastal charts with Auto Guidance technology.

Even better, EchoMap Ultra 125sv also supports optional Panoptix LiveScope LVS12Sonar(no black boxes required), plus the fullLineof Panoptix all-seeingSonartransducers. It also supports the Panoptix LiveScope system.

Features

– Fishfinder / GPS combo
– 12″ display screen size
– IPX-7 waterproof standard
– Internal 10HZz GPS/glonass receiver
– NMEA2000 connectivity
– Pre-loaded Australia and NZ maps
– 5000 waypoints, 100 routes, 50 trails
– Built in Quickdraw contour mapping
– GT54UHD-TM transducer included
– 800kHz, chirp clear vu: 455kHz, ultra high definition sidevu: 1200 kHz
– Operating frequency: chirp high-wide: 150-240 kHz, ultra high definition clearvu:
– Built in support for Panoptix sonar and Panoptix livescope scanning sonar system

Box Contents

– ECHOMAP Ultra 125sv with BlueChart G3 for Australia/New Zealand
– GT54UHD-TM transducer
– Power/data cable
– Tilt mount with quick release cradle
– Flush mount
– Protective cover
– Hardware
– Documentation

Specifications

– Model: MPN 010-02113-20
– Dimensions: 13.4″ x 9.0″ x 3.9″ (341 x 229 x 98 mm)
– Display Size: 10.3″ x 6.4″ – 12.1″ diagonal (26.1 cm x 16.3 cm – 30.7 cm diagonal)
– Screen Size: 12″
– Display Resolution: 1280W x 800V pixels
-IPX Water Rating: IPX7
– Wattage: 26W
– Wireless Network: Yes
– NMEA0183 Compatibility: Yes
– NMEA2000 Compatibility: Yes
– Mounting Options: Flush, Flat or Bail Mount
– WiFi Connectivity: Built-in
– Expansion Card Slot: 2 x microSD
– Chirp Sonar: Yes
– Operating Frequency: 455KHz
– Side Imaging (Transducer Dependant): Yes
– Output Power: RMS 600W
